Description
We are a dealer for LSK products and this is one of their kits – this partnership allows us, a small business to provide more products to you!
Introducing The Weld It Yourself Cage Kit For The RZR Pro R 2 Seater! This Cage Is Built With .120 Wall DOM Main Tubes, .120 Wall DOM B-Pillar Tube, and .095″ DOM Support Tubing That Can Be Either MIG or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.
INCLUDES
- 3D Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
- 75″ OD .120 Wall DOM Tubing For The Main Bars and B-Pillar Tubes
- 75″ OD .095 Wall DOM Tubing For Remainder 1.75” Tubes
- 25″ OD .095 Wall DOM Tubing For Windshield Cross Bars
- Cage Bungs & Hardware To Mount In Factory Cage Mounting Locations
REQUIRES
- Welding – This Kit Can Be Welded Together Once Configured On The Vehicle
UPGRADES

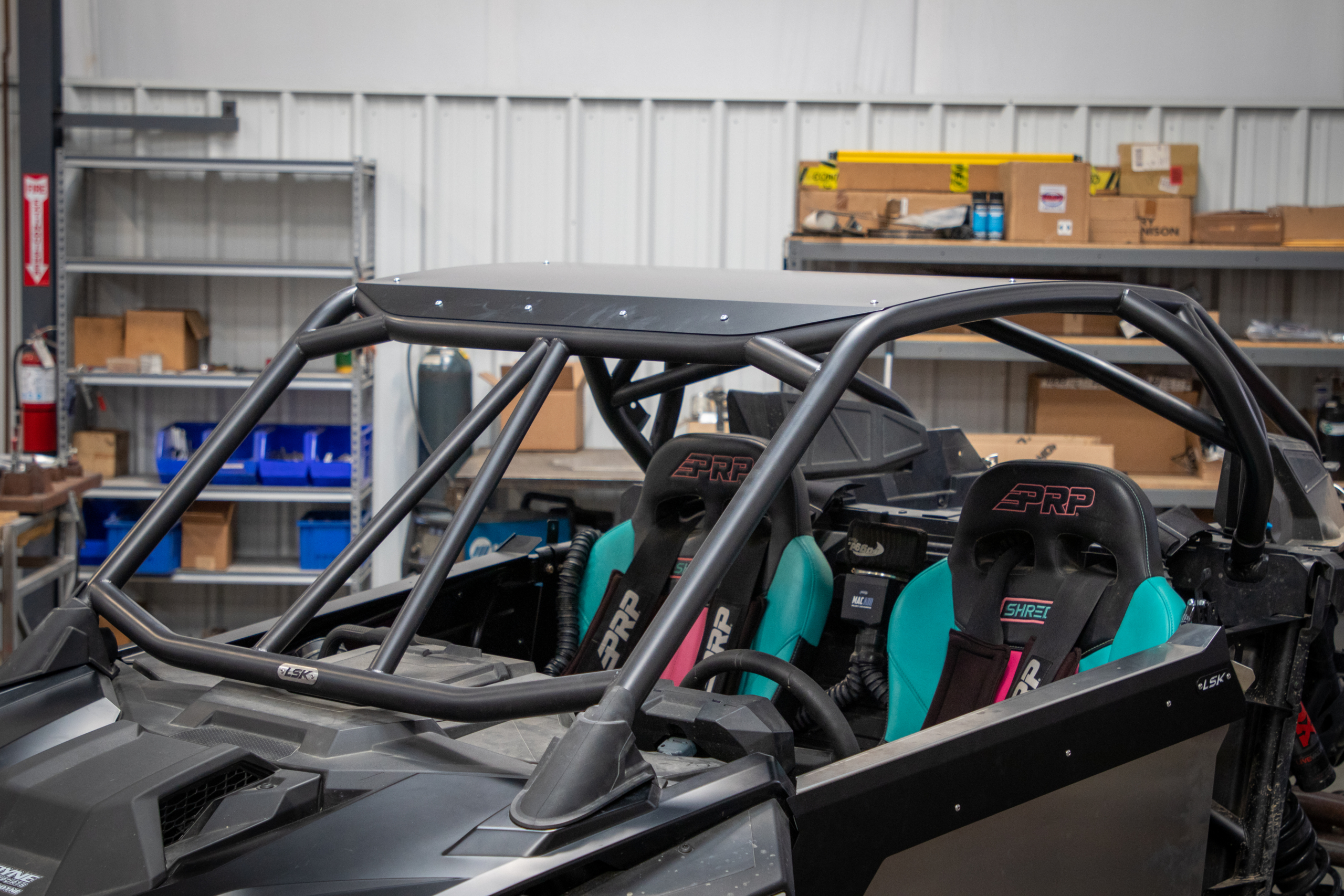

- Aluminum Roof – .06 Thick 1 Piece Roof W/ Small Visor – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware
NOTES
- Must Use A Floor Jack Under Center Of Vehicle During Installation To “level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
