Description
We are a dealer for LSK products and this is one of their kits – this partnership allows us, a small business to provide more products to you!

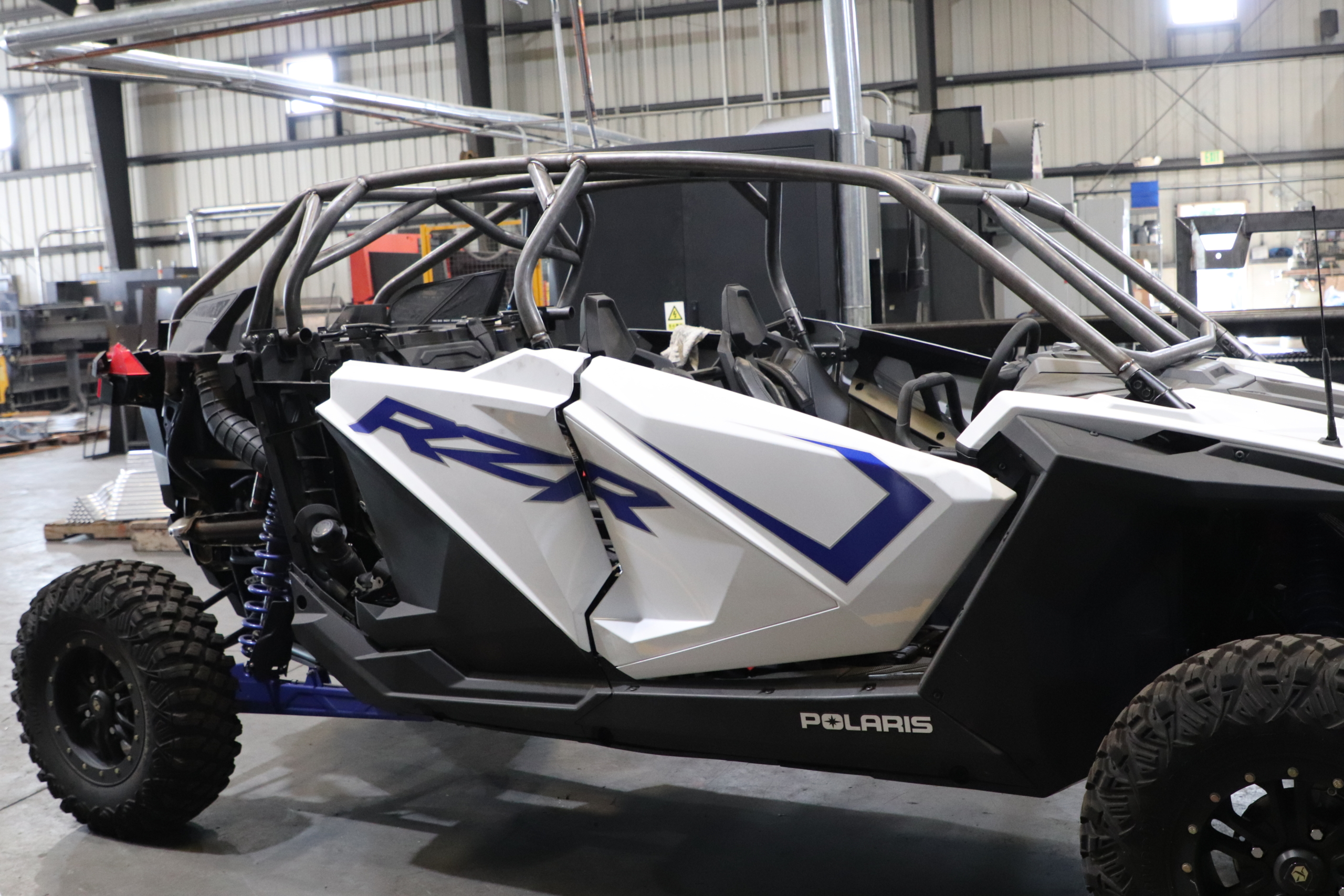

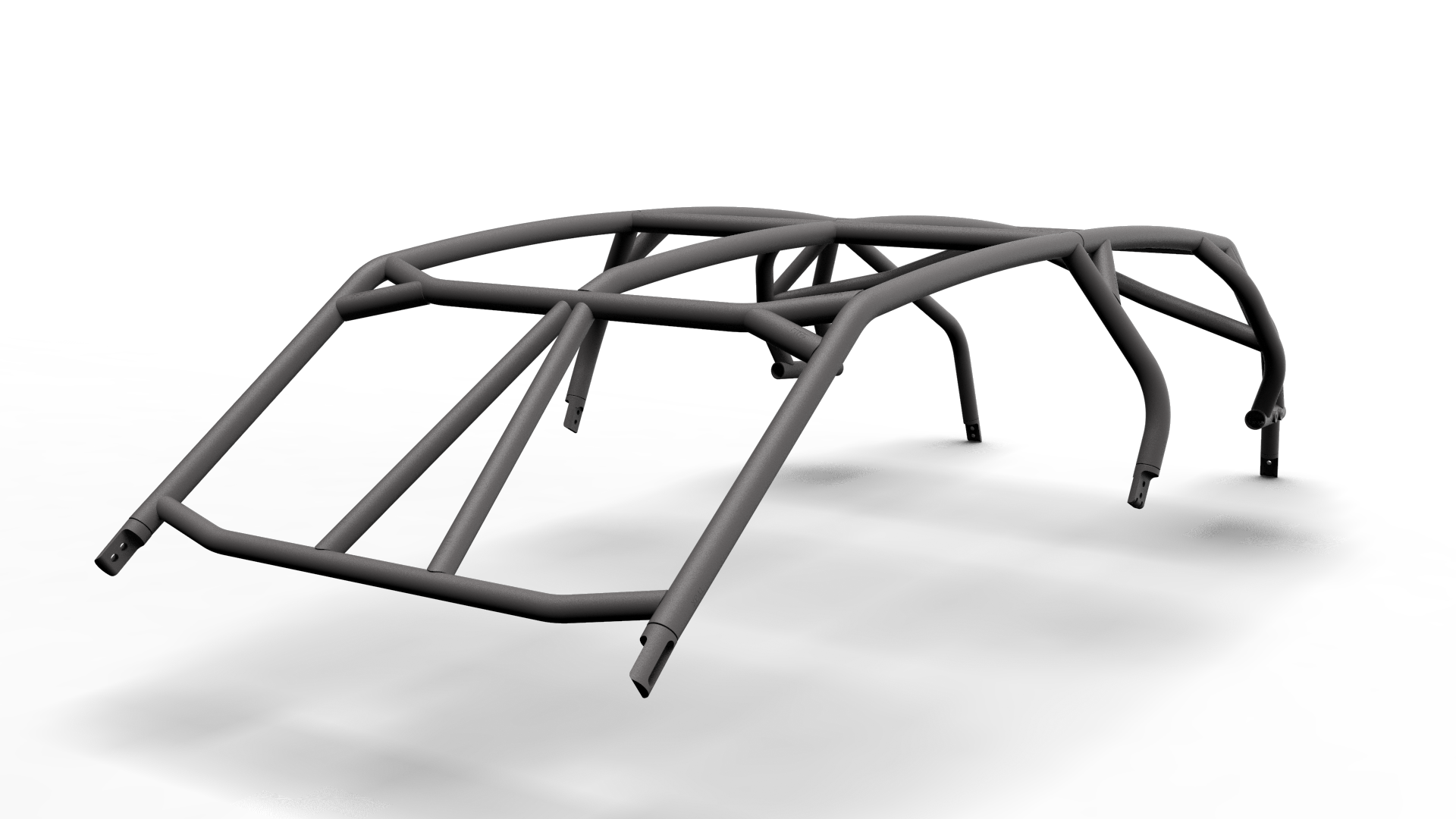

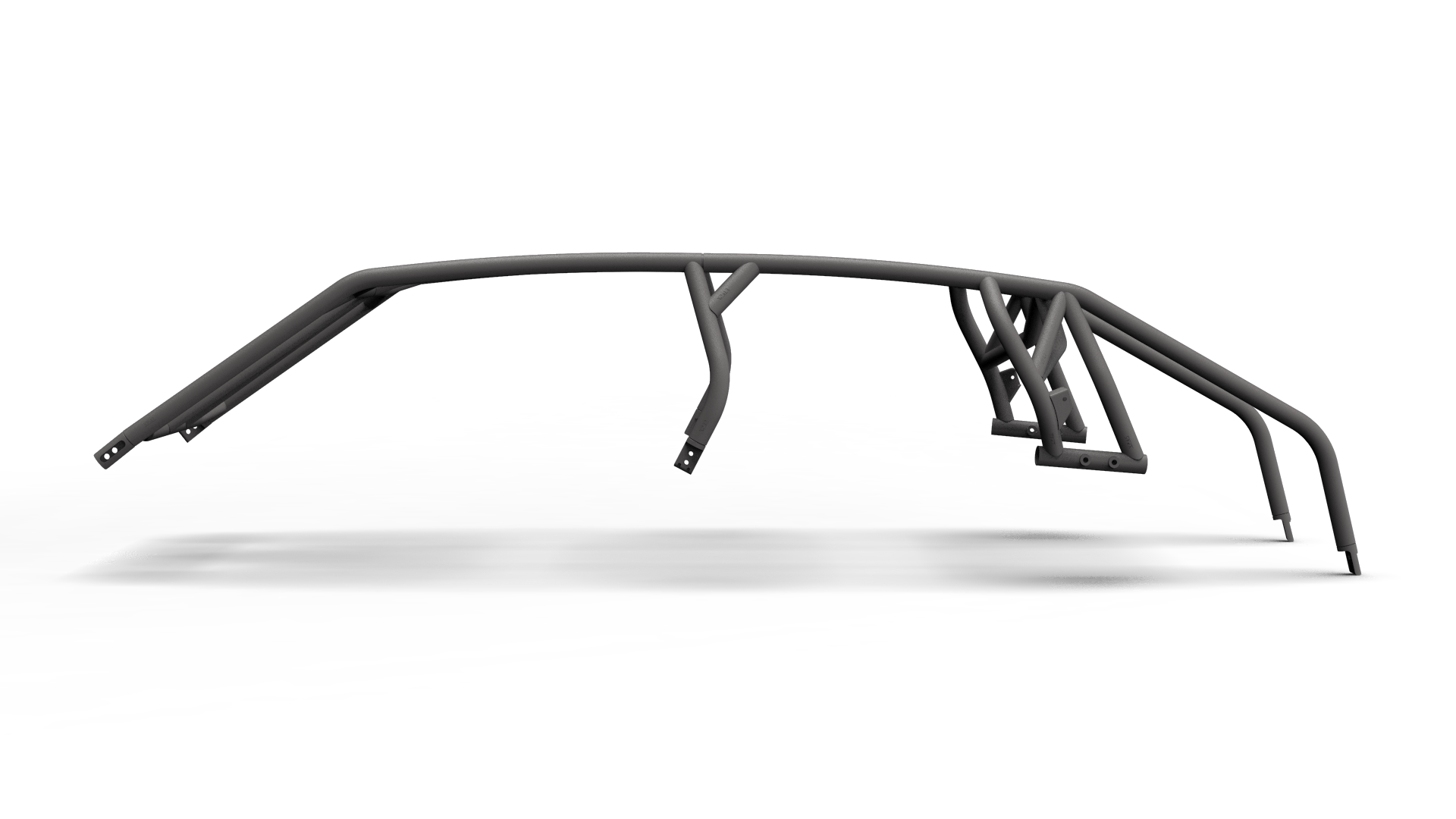

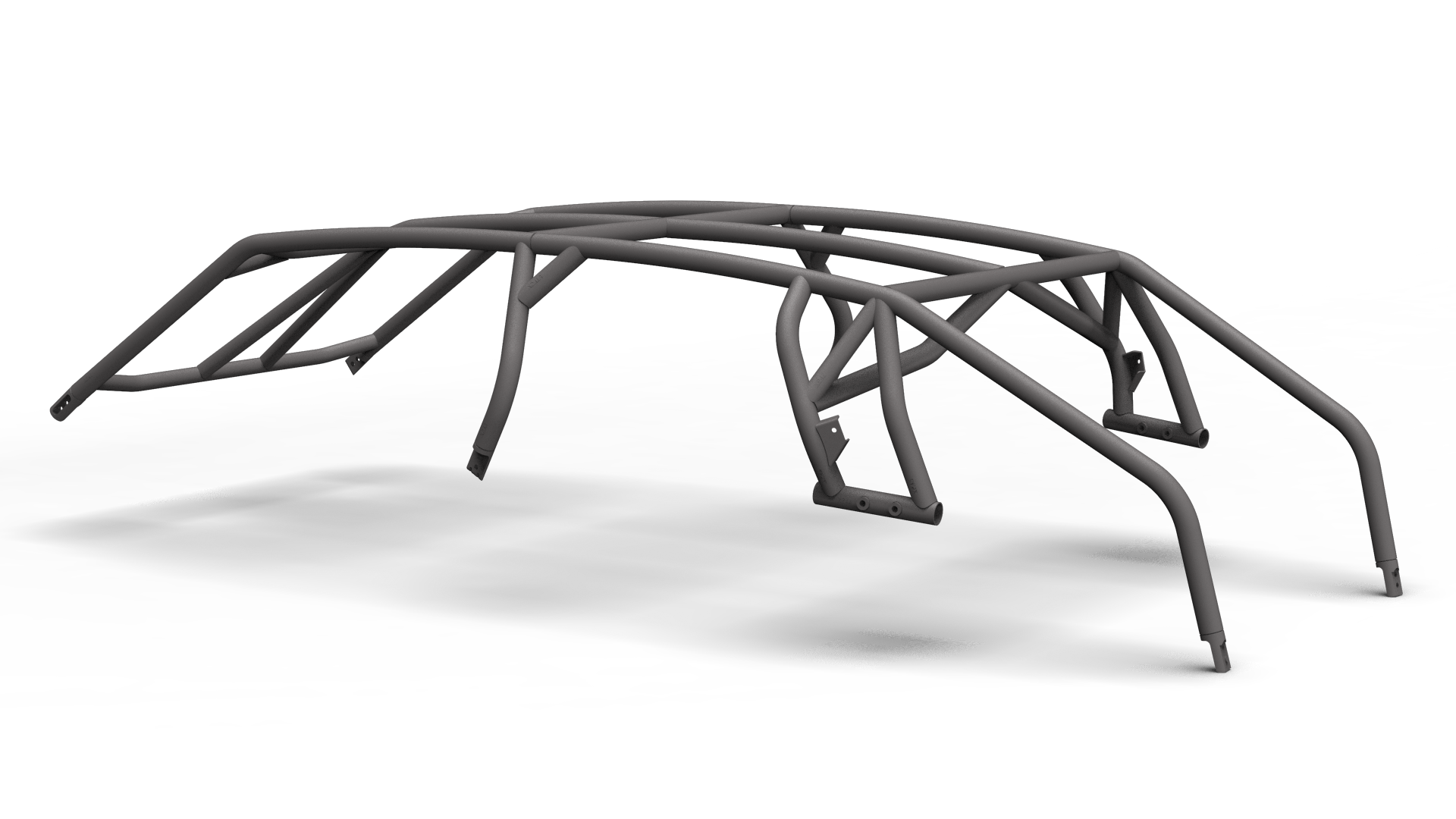

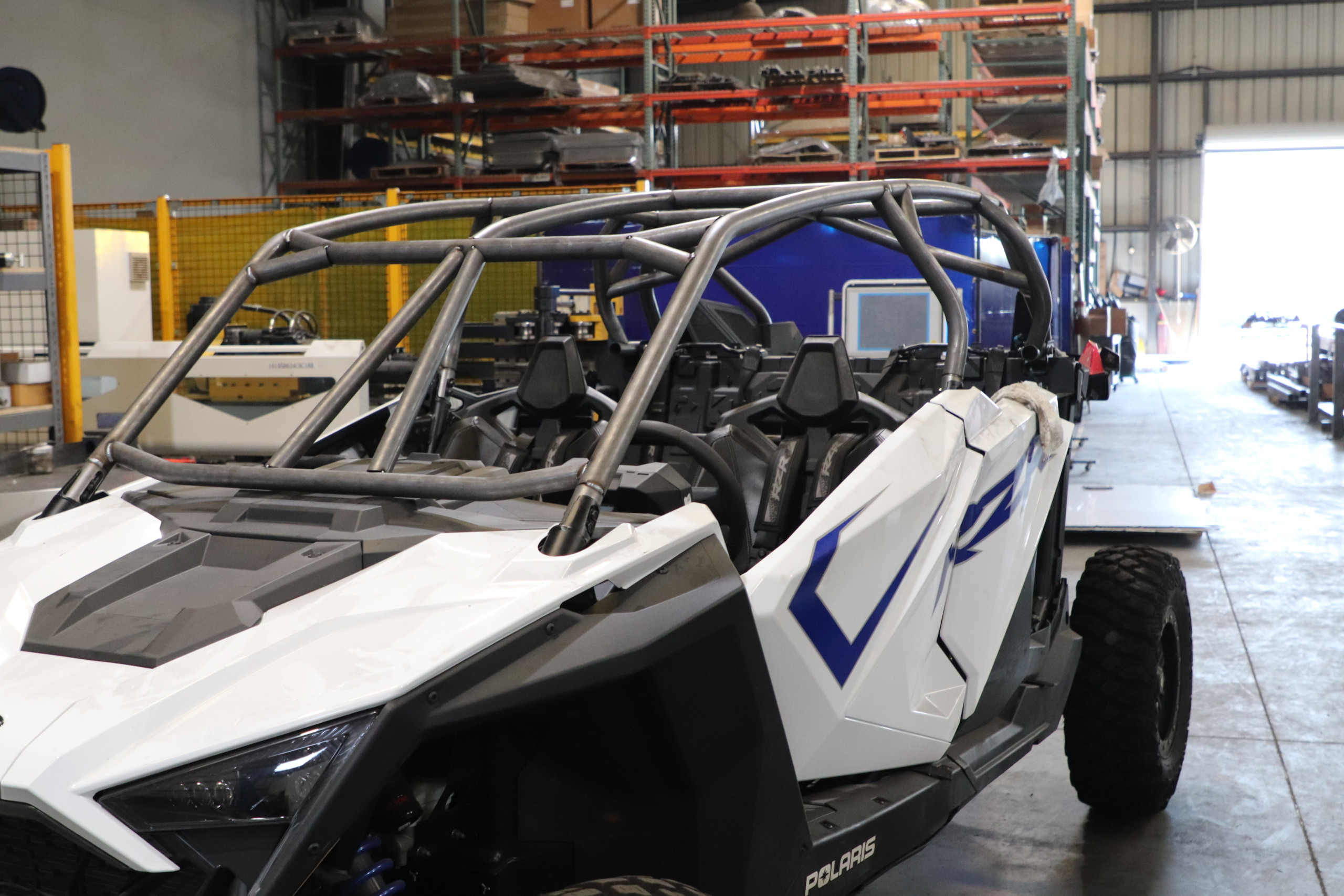

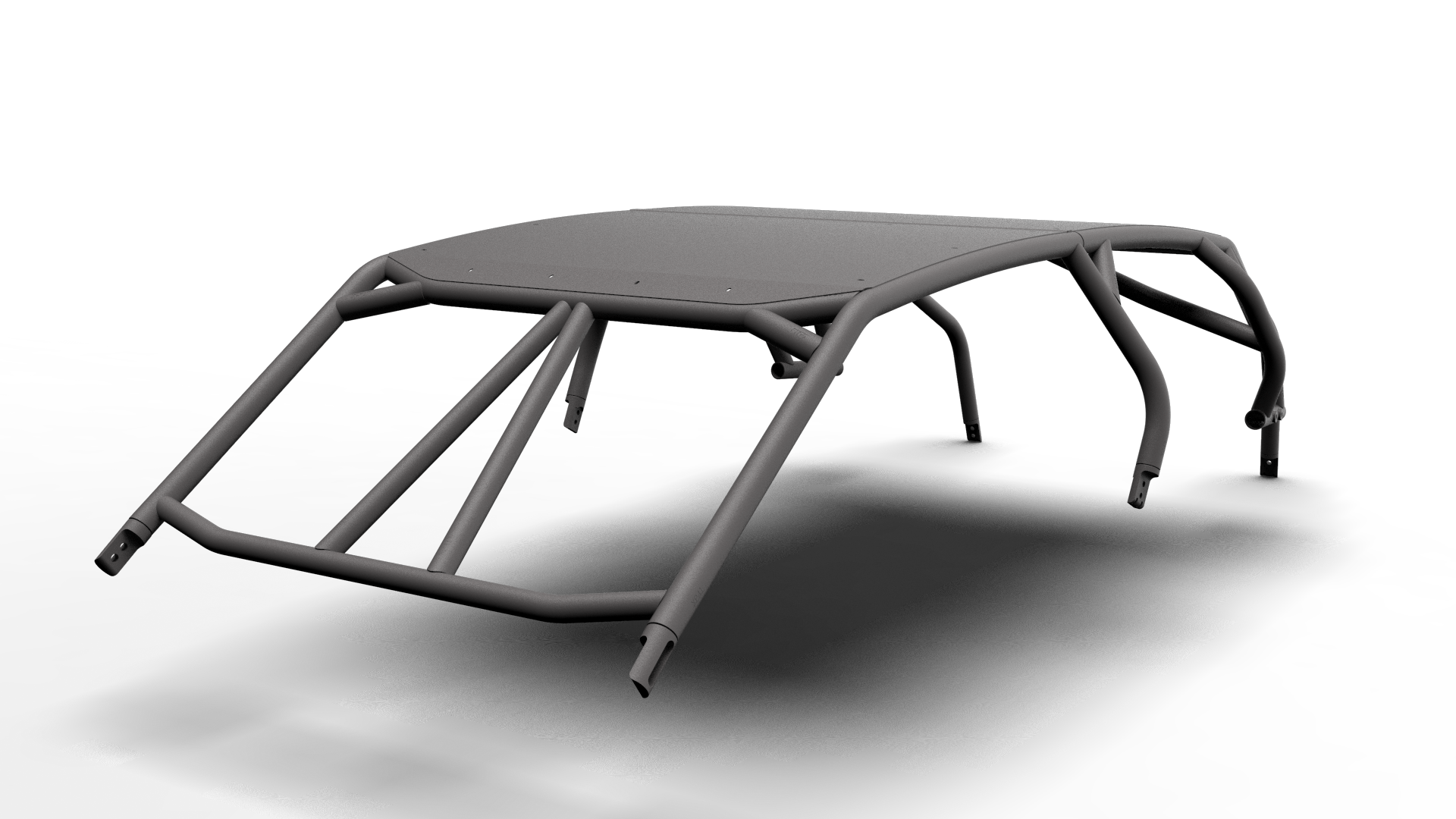

Introducing The Weld It Yourself Cage Kit For The RZR PRO XP 4 Seater! This Cage Is Built With .120 Wall DOM Main Tubes And .095″ DOM Support Tubing That Can Be Either MIG or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.
INCLUDES
- 30 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
- 75″ OD .095 Wall DOM Tubing For Main Structure
- 50″ OD .095 Wall DOM Tubing For Windshield Cross Bars
- Cage Bungs & Hardware To Mount In Factory Cage Mounting Locations
REQUIRES
- Welding – This Kit Can Be Welded Together Once Configured On The Vehicle
UPGRADES

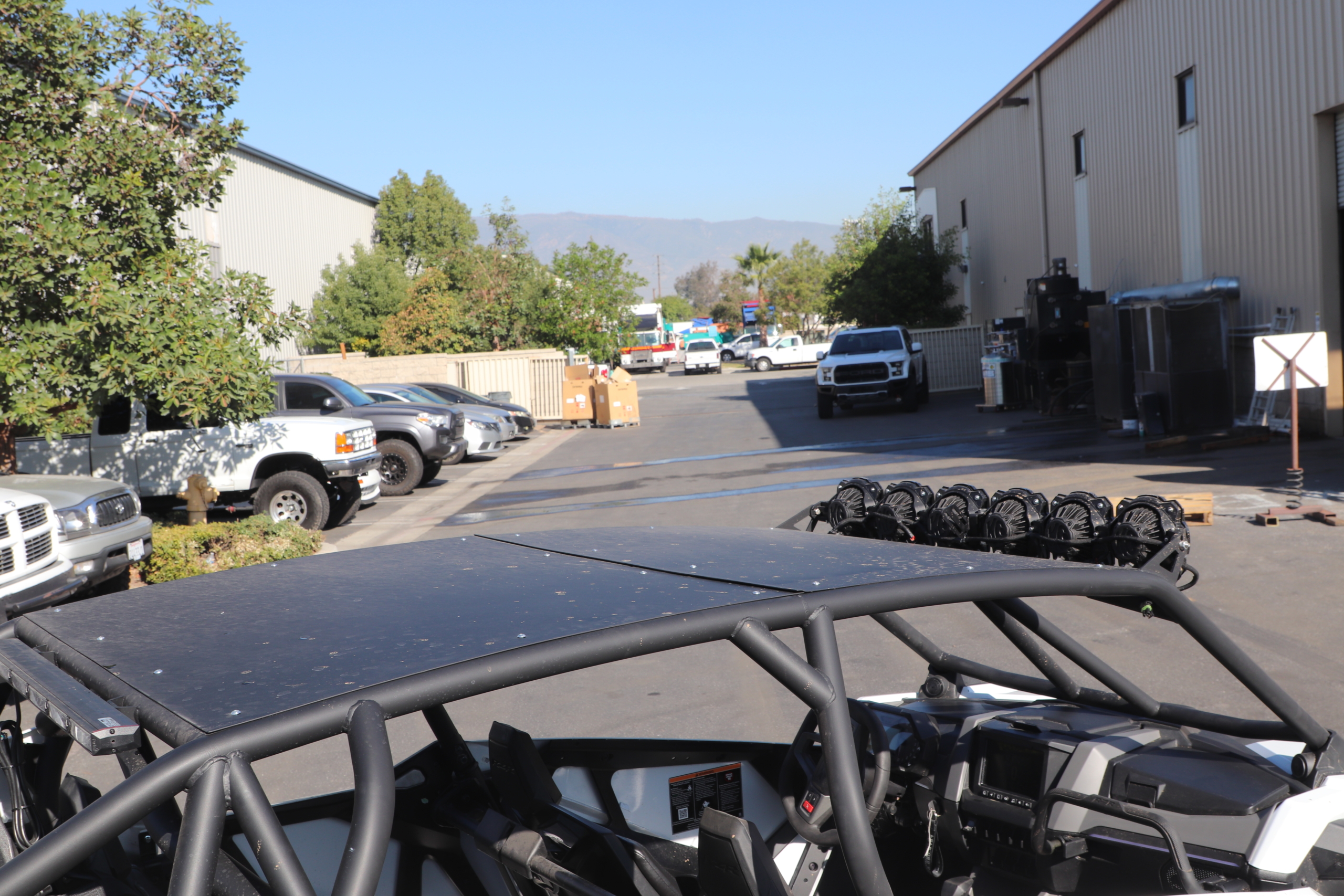

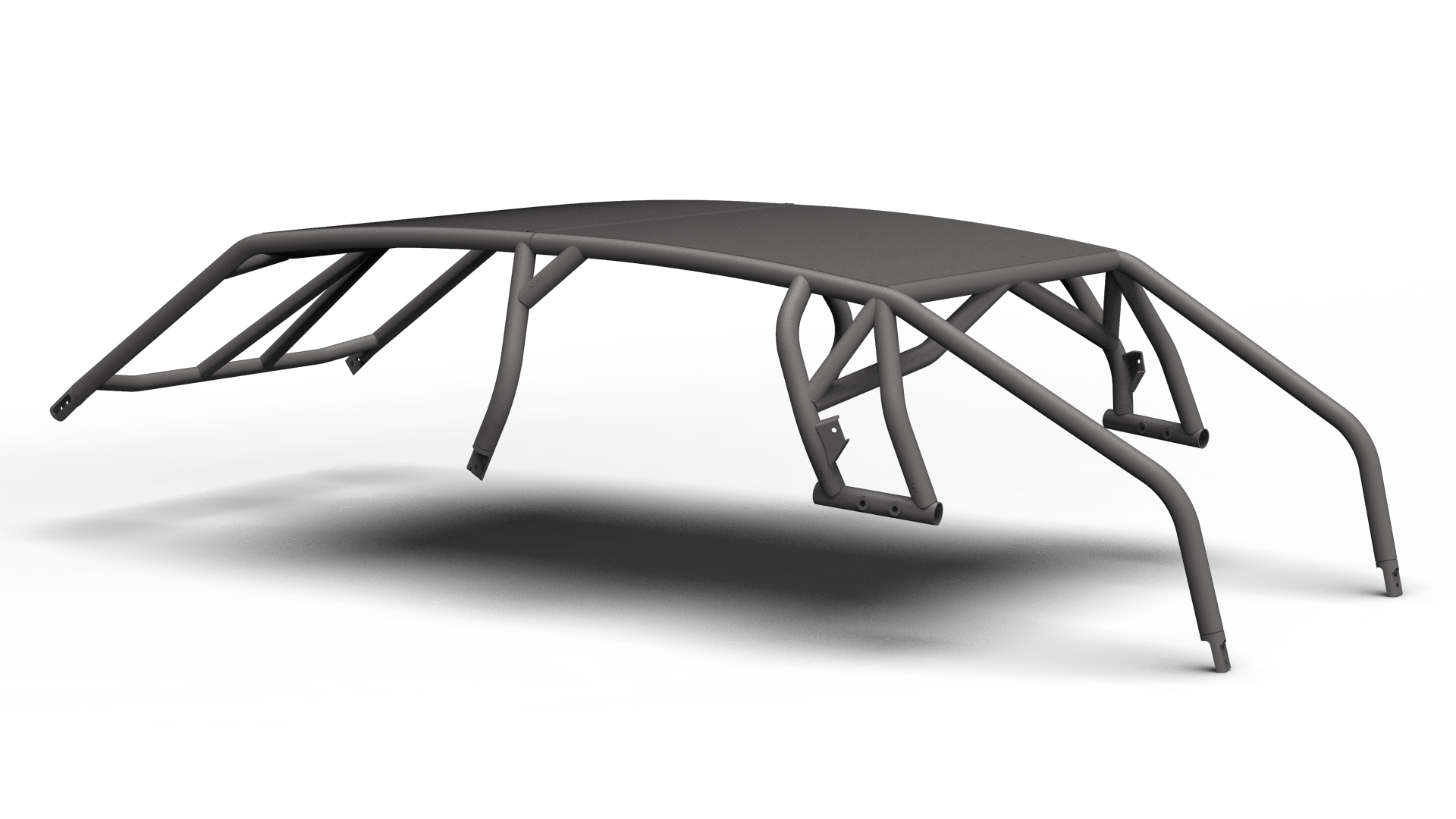

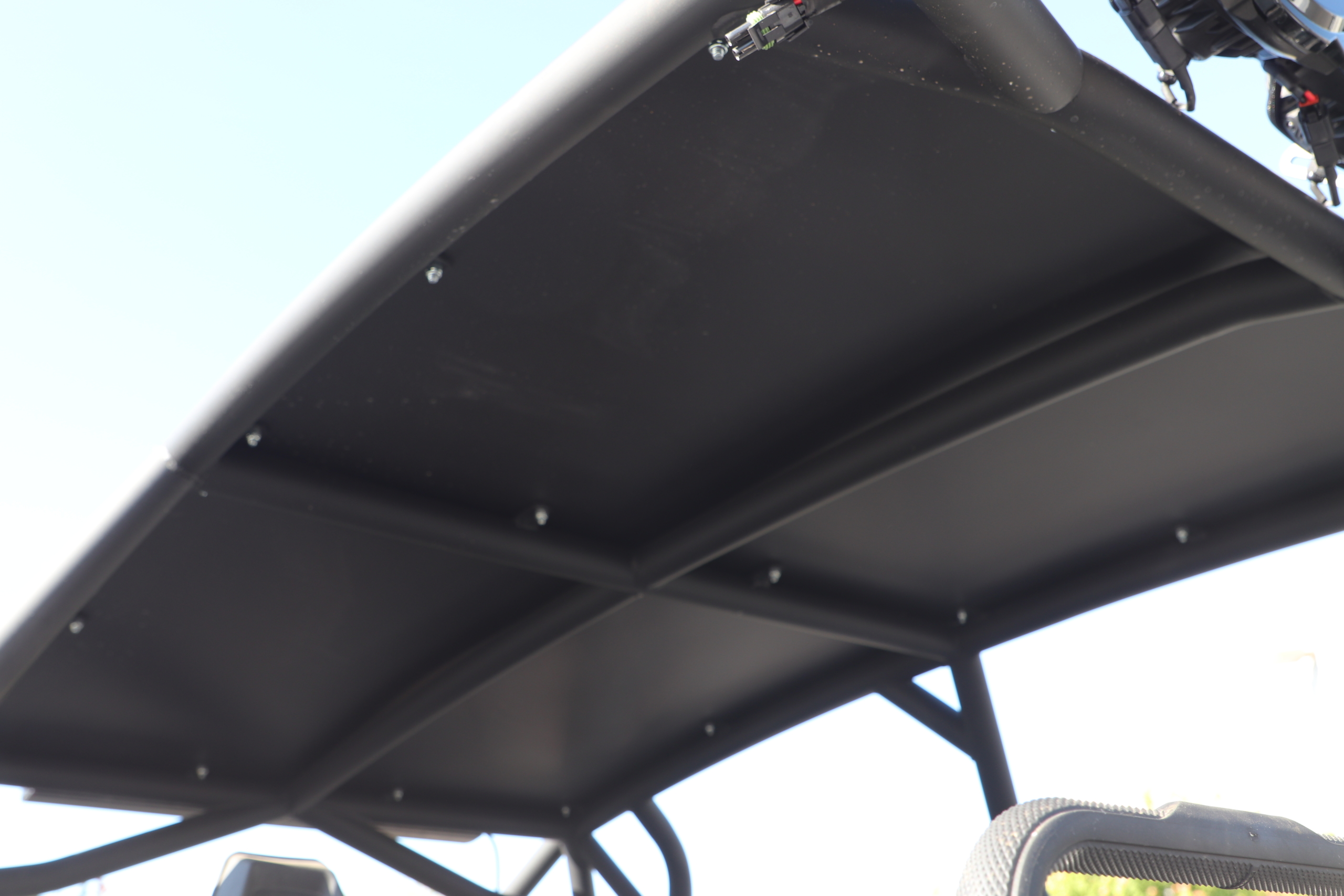

- Aluminum Roof – .06 Thick 2 Piece Roof W/ Small Visor Bend And Bead Rolled Joint – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware
NOTES

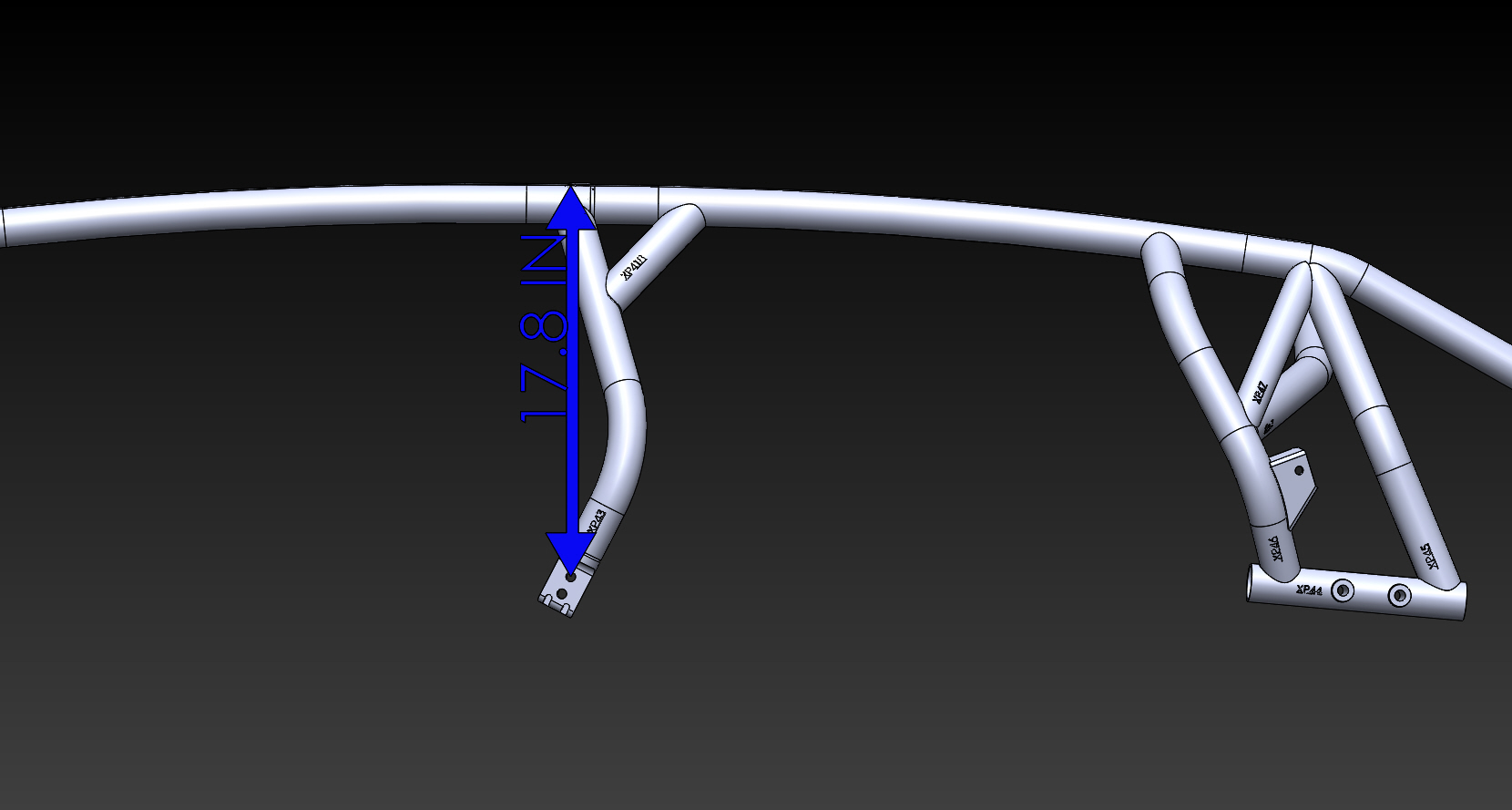

- This Cage Sits 17.80″ (45.21cm) Tall From Center Of B Pillar Through Bolt To Highest Point On Cage
- Must Use A Floor Jack Under Center Of Vehicle During Installation To “level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
INSTALLATION VIDEO
- Coming Soon!
